Another feather in our cap is the modular polyethylene underground tank, designed by renowned Italian product designer Mr. Giovanni Murattori. You demand the volume, we have it. These tanks are pre-plumbed and modular in design, with each module providing a 5,000 Litre volume capacity. The system can be modulated to any desired volume and layout (linear, serpentine zigzag, or U-loop) and shipped directly to your site within 2 working days.
Another feather in our cap: pre-plumbed 5,000 Litre modular polyethylene underground tanks designed by renowned Italian product designer Mr. Giovanni Murattori. You demand the volume, we have it — modulated to any capacity and site geometry, shipped within 2 working days.
Sectional modular polyethylene chambers allowing arbitrary volumetric scaling without civil casting delays.
Pre-plumbed standardized modular units that scale effortlessly from 10kL to 100kL+.
Rapid factory dispatch shipped directly to your site, eliminating construction backlogs.
Unsurpassed thermal tolerance protecting against cold-climate cracking and tropical soil heat.
Smooth non-porous interiors completely impervious to harsh acids, alkalis, and soil salts.
Telescopic extension risers available to easily achieve exact finished ground level.
Tanks can be factory colored to suit project safety coding, facility zoning, or client choice.
Pre-plumbed standardized modules can be assembled linearly or in multi-row bends to fit restricted, irregular, or narrow site boundaries.

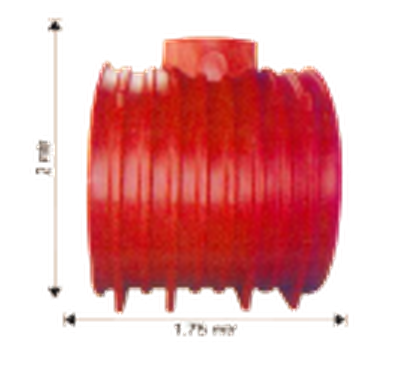

Standardized interlinkable middle chamber. Connect as many middle units as required between end caps to expand capacity in 5,000L increments.
Terminal domed chamber with pre-plumbed inlet/outlet collars, engineered for hydrostatic end thrust resistance and vacuum inspection access.

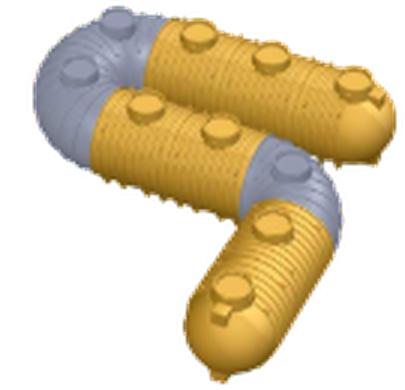

Optimized for narrow, curved, or obstructed plots. Uses heavy curved polyethylene transfer elbows to snake around tree lines or building footings.

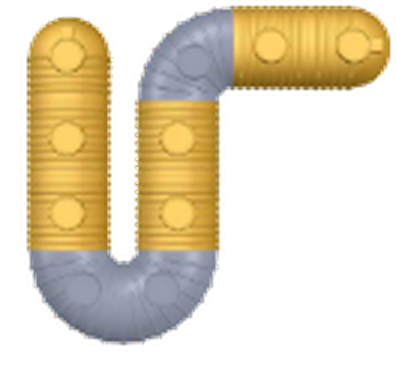

Arranges modules in dual parallel runs connected by a 180° return bend. Delivers massive retention volume in a compact rectangular excavation pit.
Verified factory specifications, designer credentials, thermal ratings, and modular dimensions
| Engineering Parameter | Factory Specification | Operational & Structural Benefit |
|---|---|---|
| Product Designer | Mr. Giovanni Murattori (Renowned Italian Product Designer) | Italian hydrodynamic engineering ensuring optimal anaerobic settling & structural load distribution |
| Standard Module Capacity | 5,000 Litres (5 m³) per module | Standardized increment allows scalable capacities (10,000L to 100,000L+) tailored to project size |
| Middle Module Dimensions | Height: 2.0 Metres • Length: 1.75 Metres | Intermediary sectional ring segments with integral anti-flotation and soil anchoring feet |
| End Module Dimensions | Height: 2.0 Metres • Length: 2.0 Metres | Terminal domed caps engineered for hydrostatic end-wall pressure and dual inspection points |
| Temperature Tolerance | -35°C to +60°C Operating Range | Cent percent resilient across extreme environmental freezing and high tropical soil temperatures |
| Watertight Integrity | 100% (Cent Percent) Leak Proof | Zero porosity or joints between module walls; completely eliminates groundwater contamination |
| Chemical Resistance | Resistant to Acids, Alkalis, Salts & Sewage | Non-reactive polymer formula withstands biogenic sulfuric acid from anaerobic decomposition |
| Lids & Risers | Double-Walled Safety Lids + Optional Risers | Heavy-duty child & vehicular safety lids with telescopic risers to match exact ground finish level |
| Manufacturing Lead Time | Shipped to site within 2 Working Days | Pre-plumbed factory inventory guarantees unmatched turnaround times for rapid civil project timelines |
| Color Customization | Custom client color coding available | Tanks can be factory tinted to match institutional zoning or client color code requirements |
| Designer | Mr. Giovanni Murattori (Renowned Italian Product Designer) |
| Base Module Capacity | 5,000 Litres (5 m³) per unit |
| Middle Module Dimensions | Height: 2.0 m | Length: 1.75 m |
| End Cap Module Dimensions | Height: 2.0 m | Length: 2.0 m |
| Temperature Rating | -35°C to +60°C operating tolerance |
| Material Composition | 100% Virgin High-Grade Engineering Polyethylene |
| Chemical Resistance | Cent percent resistant to acids, alkalis, salts & domestic sewage |
| Lid Architecture | Double-walled heavy-duty safety lids with optional extension risers |
| Lead Time / Shipping | Shipped to site within 2 working days |
| Color Options | Custom client color coding available on request |
Excavate pit to required modular geometry, lay level compacted sand bedding, align pre-plumbed modules, secure watertight modular mechanical couplings, adjust extension risers to grade, and backfill evenly.
Our technical engineering team in Thrissur provides immediate quotes, CAD dimensions, and site delivery schedules across all districts of Kerala.
Compact and lightweight single-moulded polyethylene septic tank (30 kg), ideal for small homes, outhouses, or annexes.
Standard vertical monolithic polyethylene septic tank for medium-sized independent houses and 4-5 person families.
