RCC Septic Tank (Centrifugally Cast)

United RCC Septic Tanks revolutionize traditional concrete tank performance. By employing high-speed centrifugal casting technology, concrete slurry is compacted under intense centrifugal acceleration, expelling trapped air pockets and eliminating honeycomb voids.

Download Brochure (PDF)

✓ Genuine Factory Engineered ✓ Kerala-Wide Delivery ✓ Technical Installation Support

UNITED RCC septic tank on a white background

CENTRIFUGALLY CAST CONCRETE • 7 STANDARDIZED SIZES

Standard RCC Models & Dimensional Matrix

Factory-engineered centrifugally spun concrete septic tanks spanning 7 standardized diameter configurations (Type A 12" to Type F 48"), built with dense pore-free concrete and integrated 3-chamber clarification.

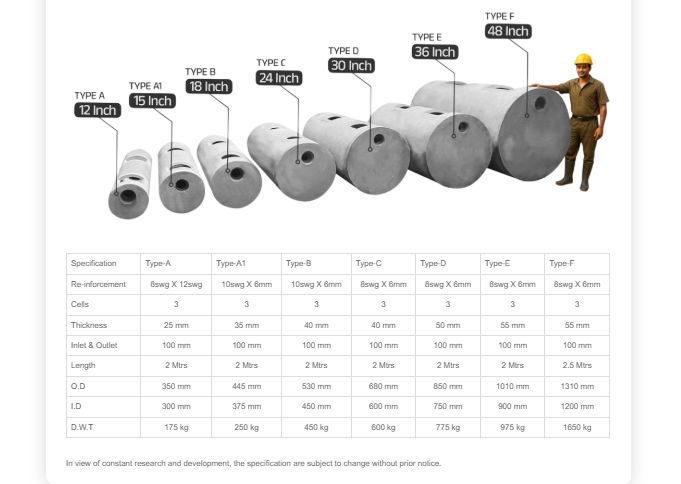

UNITED Centrifugally Cast RCC Septic Tank Range: Type A 12 Inch to Type F 48 Inch with Worker Scale

TYPE A12" (300mm)

TYPE A115" (375mm)

TYPE B18" (450mm)

TYPE C24" (600mm)

TYPE D30" (750mm)

TYPE E36" (900mm)

TYPE F48" (1200mm)

Official Technical Specifications Matrix

Verified factory dimensions, structural reinforcement, shell thickness, and dead weight capacities

Standard 3-Chamber Cells

Scroll horizontally to view all 7 model specifications

Specification	Type-A 12 Inch	Type-A1 15 Inch	Type-B 18 Inch	Type-C 24 Inch	Type-D 30 Inch	Type-E 36 Inch	Type-F 48 Inch
Re-inforcement	8swg X 12swg	10swg X 6mm	10swg X 6mm	8swg X 6mm	8swg X 6mm	8swg X 6mm	8swg X 6mm
Cells (Chambers)	3	3	3	3	3	3	3
Shell Thickness	25 mm	35 mm	40 mm	40 mm	50 mm	55 mm	55 mm
Inlet & Outlet	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm
Standard Length	2 Mtrs	2 Mtrs	2 Mtrs	2 Mtrs	2 Mtrs	2 Mtrs	2.5 Mtrs
Outer Diameter (O.D)	350 mm	445 mm	530 mm	680 mm	850 mm	1010 mm	1310 mm
Inner Diameter (I.D)	300 mm	375 mm	450 mm	600 mm	750 mm	900 mm	1200 mm
Dead Weight (D.W.T)	175 kg	250 kg	450 kg	600 kg	775 kg	975 kg	1650 kg

ENGINEERING SPECIFICATIONS

Key Features & Structural Design

Centrifugally spun concrete yields ultra-dense compaction and smooth internal finish
High-grade reinforcement steel cage embedded within rich cement matrix
Exceptional compressive strength capable of withstanding heavy surface vehicle loads
Factory-cured under controlled atmospheric conditions for uniform strength
Ready-to-install precast units delivered directly to the construction site
Integrated baffle divisions for effective anaerobic settling

Operational Benefits

Can be placed beneath car parking bays, driveways, and heavy traffic zones

Pore-free inner walls prevent subterranean sewage leaching into nearby drinking wells

Zero on-site masonry work or shuttering required, saving weeks of construction time

Tremendous structural stability resistant to earth tremors and soil vibrations

Recommended Applications

Urban plots where the septic tank must be located beneath vehicle driveways/porches
Apartment complexes, residential townships, and educational institutions
Industrial estates, factories, and warehouses with heavy vehicle traffic
Hospitals and commercial buildings requiring robust underground containment

Technical Data Sheet

Available Range	7 Models (Type A 12" to Type F 48")
Manufacturing Method	High-Speed Centrifugal Force Spun Cast
Internal Partitioning	3 Engineered Cells / Anaerobic Chambers
Shell Wall Thickness	25 mm to 55 mm High-Density Concrete
Inlet & Outlet Apertures	100 mm (4") Standard Core Openings
Reinforcement Cage	8swg / 10swg Wire Mesh with 6mm High-Yield Steel Rods
Standard Lengths	2.0 Mtrs (Types A to E) & 2.5 Mtrs (Type F)
Weight Range (D.W.T)	175 kg (Type A) up to 1,650 kg (Type F)
Surface Texture	Mirror-smooth internal bore free of voids and honeycombing
Load Capacity	Engineered for heavy vehicular traffic (Driveways & Porches)
Connections	Precision pre-cast core inlet and outlet apertures
Lid System	Reinforced concrete slab cover with inspection manholes
